RL78 small prototyping board
  • Model name : RM-RL78-G13-MAIN
  • Price : USD (TAX included)
  • Point :
  • Quantity :

    • 개요
    • 구성도
    • 제품작동
    • 콘텐츠
    • 쇼핑

    1. The specification of RL78 smallprototyping board(RM-RL78-G13-MAIN)

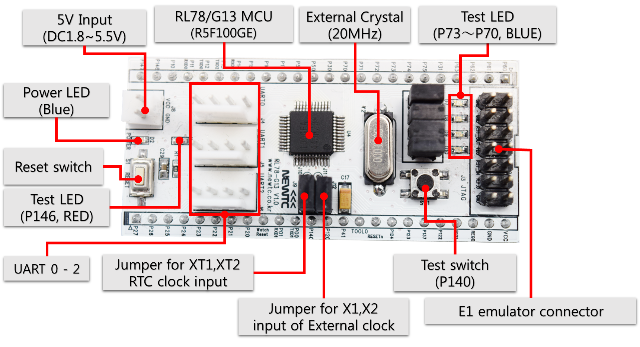

    RM-RL78-G13 moduleis equipped, so Learning and development is possible using the RL78 MCU.

    R5F100GE is adoptedRL78/G13 MCU 48p having 64KB internal flash memory.

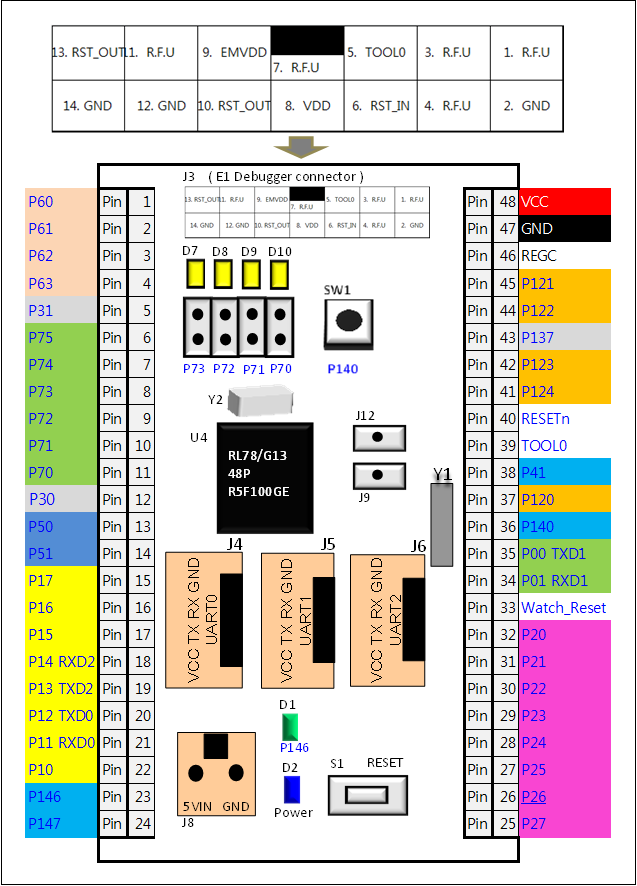

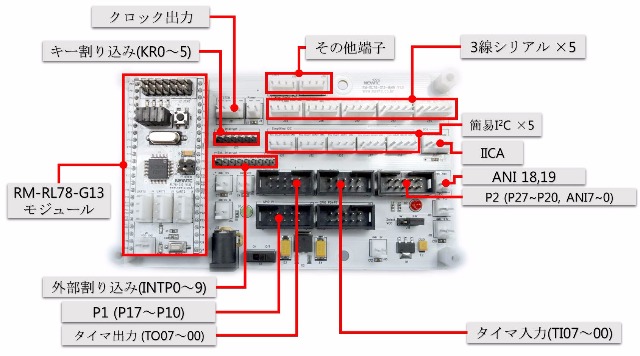

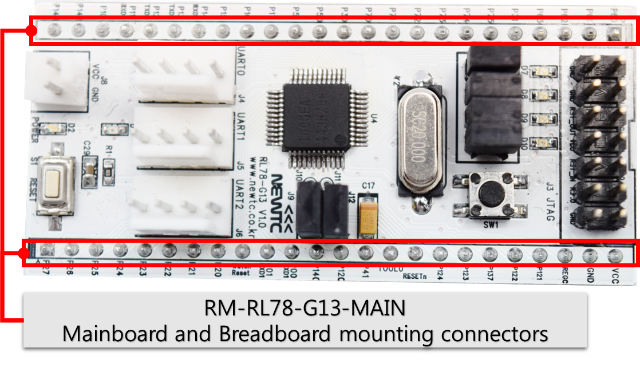

    RL78 / G13 MCU pinsand special function pins are connected with connectors separately, respectively.

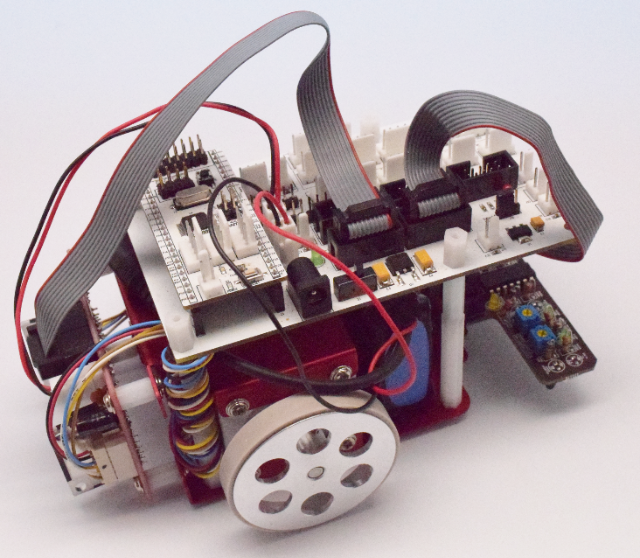

    Fixing holes on themain board are available in aluminum linetracer body of NEWTC.

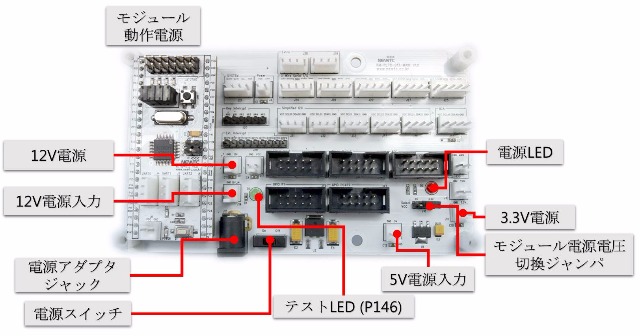

    For adaptor input,you can supply DC 6.5~12V, and also 5V / 3.3V power to module

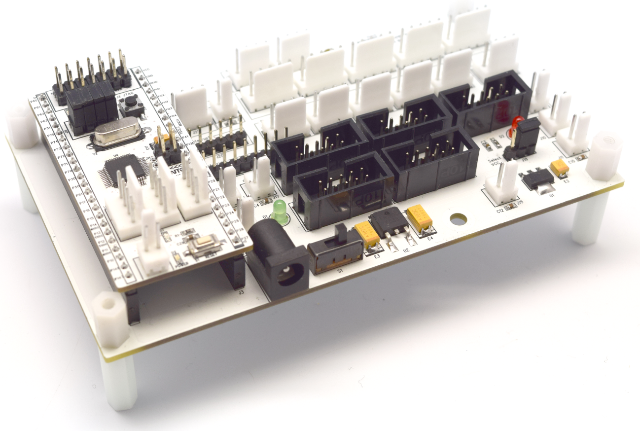

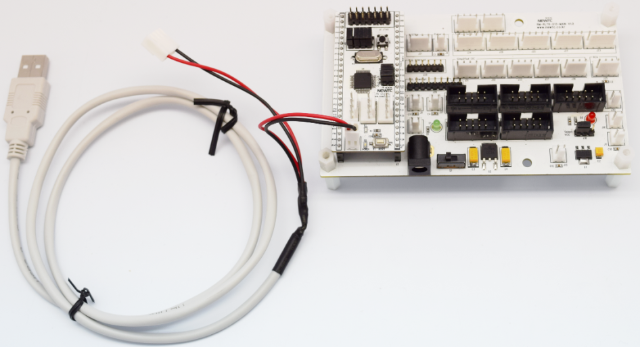

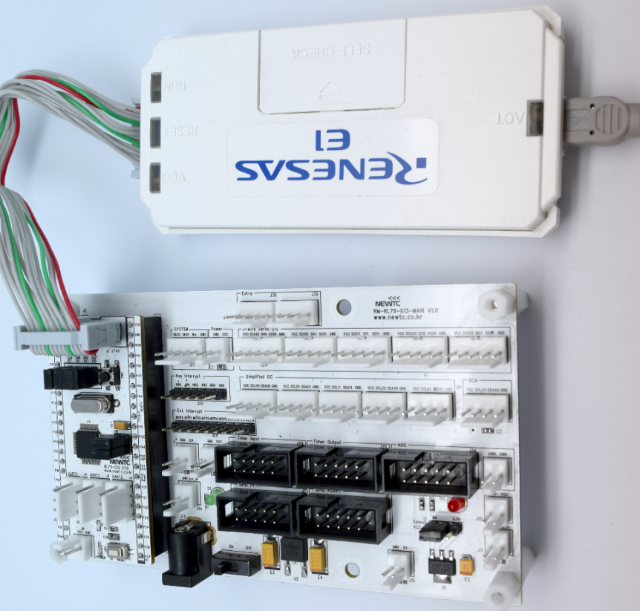

    RM-RL78-G13-MAIN development board
